INFRASTRUCTURE RENTALS/SALES

We provide a single source for a complete line of hydrostatic testing equipment and supplies. Much of our equipment is also available for rental and export. We have 30 years in the business serving the needs of the industry and are in a unique position to assist you in solving your problems quickly and cost effectively.

Download Cross Country's Product & Service Brochure

Contact Us Today

 (855) 955-2247   REQUEST QUOTE

Pipeline Hydrostatic Testing Systems

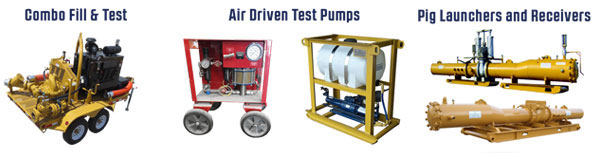

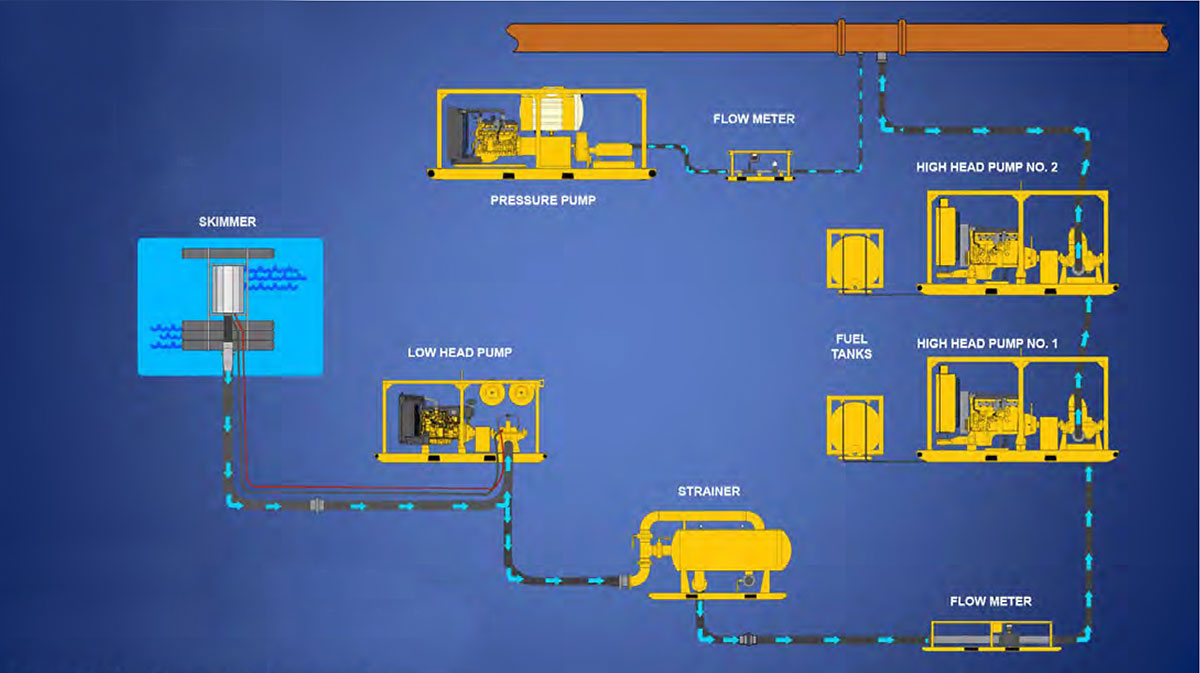

Cross Country can provide any single component or complete fill & test systems for hydrostatic testing. We supply fill & test pumps, certified high-pressure hoses, fittings, calibrated meters and pig launchers & receivers, no matter what the pipe size, length or elevation gain. In addition, our experienced staff can assist you with fluid design calculations, layout drawings and the “know how” needed to complete your project to spec on time.

Hydrostatic Testing Systems
Hydrostatic Testing Systems
Hydrostatic Testing Systems
Hydrostatic Testing Systems

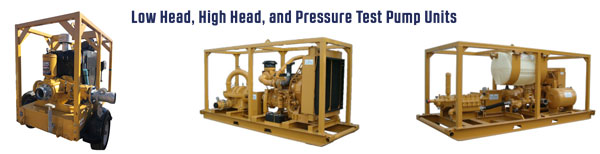

Available Models and Configurations

PAI LOW Head DRY PRIME Centrifugal/Diesel Driven

  • 4 x 4 /4NNTL /Air Prime 1200 GPM/ 50 PSI. / Trailer
  • 6 x 6 / 6NNT air prime /2500 GPM/ 55 PSI/ trailer
  • 6 x 6 / 6NNT VAC prime /2500 GPM/ 55 PSI/ skid
  • 8 x 6 / 6HH Air Prime/ 3500 GPM / 150 PSI
  • 8 x8 / 8NNT / Air Prime 4800 GPM/ 90 PSI / Trailer
  • 8 x8 / 8NNT / Air Prime 4800 GPM/ 90 PSI / Trailer / Silent
  • 10 x 8/ 8NHTA/ Air Prime 4500 GPM/ 130 PSI/ Trailer
  • 10X8 / 8NHTA / Air Prime 4500 GPM/130 PSI/ Skid

PAI High Pressure Plunger Test Pumps with Pressure Relief Valves/Diesel Driven

  • ATLAS - Fractional GPM/ 6000PSI (Air Driven)
  • MAC 24 - Fractional GPM/ 6000PSI (Air Driven)
  • MAC 26 (2) stage 6000 PSI ( Air Driven)
  • HP- M06 - 5000 / 4.5 GPM/ 5000 PSI ( Diesel Drive)
  • HP 28 -5000 / 28 GPM/ 5000 PSI (5 speed)
  • HP-33-5000 / 33 GPM / 5000 PSI (5 Speed)
  • HP 55 -3000 / 50 GPM/3000PSI (5 Speed)
  • HP125 -3000 / 140 GPM / 3000 PSI (5 Speed)
  • HP165 3000PSI / 175 GPM / 3000 PSI (5 Speed)
  • HP - HD600 - 3000PSI / 380GPM / 3000PSI (6 Speed)
  • HP165L -1000 / 250 GPM/ 1000 PSI (direct drive)
  • HP165M-1345/ 170 GPM / 1345 PSI (direct drive)
  • HP600-L-1000 / 608GPM /1000 PSI
  • PAI MIDWEST COMBO FILL & TEST UNIT : HTU 350
  • PAI MIDWEST COMBO FILL & TEST UNIT : HTU 500

Selected Configurations Available In Stock. Contact a Representative for Additional Options.

PAI HIGH Head DRY PRIME

  • 6 x4 /4622MX /1600 GPM/ 280 PSI /Trailer
  • 8 x6 /6822MX/ 4000 GPM/ 280 PSI /Trailer
  • 10 x8 /8NHTH/ 7500 GPM/ 195 PSI /Trailer
  • 12 x 8 /8NHG19 / 8000 GPM/ 260 PSI/ Trailer

PAI Hydraulic Submersible Pump with Hydraulic Power Unit

  • Hyd Pumps - HT60DJV / 6” /1200 GPM / 100 FT Head
  • Hyd Pumps - HT8 0DJV / 8” /2200 GPM / 100 FT Head
  • Hydraulic Power unit/ SKID OR TRAILER
  • 1” x 50 Ft Hyd. Hose

PAI LOW Head Standard Centrifugal Horizontal Split Case; For Frac Tank Use

  • 8X6 MI 2500 /Patterson/ 2500GPM-140 PSI/ Skid
  • 10 X8 MA 4000GPM-140 PSI

PAI HIGH Head Horizontal Split Case For Use With Low Head or Flooded Suction

  • 4X2 IR Two Stage 400 GPM-/400PSI
  • 4X3 DMD 900 Two Stage 900 GPM/ 250 PSI
  • 5X3 DMD 900 Two Stage 950 GPM / 350 PSI
  • 6 X 6 5TUT three stage /1600 GPM/ 400 PSI
  • 6X6 DMD 2000 Two Stage/ 2000 GPM/ 300 PSI
  • 10X10 DMD 3600 Two Stage /3600 GPM - 350PSI
  • 12 x 10 Worthington/ 7000 GPM/ 285PSI

Accessories and Supporting Equipment

  • Stroke Counter Assemblies
  • 1” Check Valves (for use on HP pumps)
  • 2” Check Valves (for use on HP pumps
  • HIGH PRESSURE FILL AND TEST HOSES

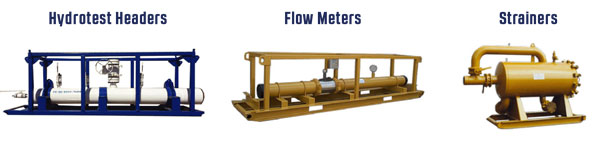

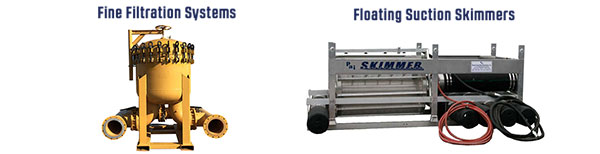

  • FILL AND TEST METERS / STRAINERS / FLOATING SUCTION
  • VALVES-BALL, PLUG, GATE, 300#, 600#, 900#
