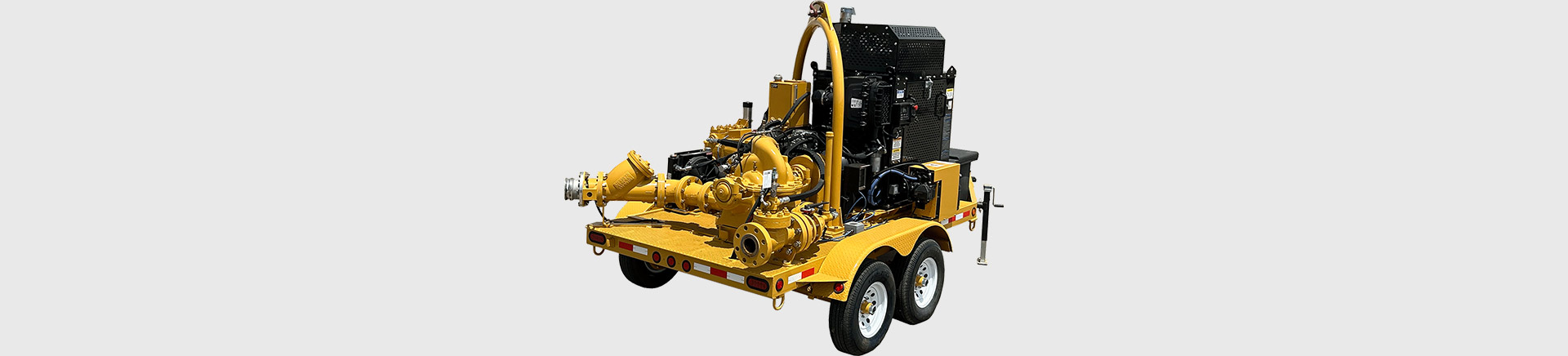

PSS Cross Country supplies the HTU-500 hydrostatic fill and test unit for accurate, efficient pipeline pressure testing and liquid measurement. Available with hydraulic or belt-driven configurations, the HTU-500 offers independent pump control, variable test-pump speeds, remote operation, and dependable performance for critical filling and testing applications.
(855) 955-2247
REQUEST QUOTE
Our new hydraulic driven test pump units offer independent control of the fill and test pumps allowing you to operate one pump at a time or both simultaneously. The hydraulic drive allows full variability of test pump speed for fine control during critical pressure testing situations. An integrated measuring device provides precise volume output from the test pump for more accurate liquid measurement. The remote controller allows for the complete operation of the units from start to stop up to 100 feet away. A self-adjusting hydraulic actuated clutch with speed engagement limiter reduces maintenance and prevents accidental engagement of the clutch during high engine speeds.

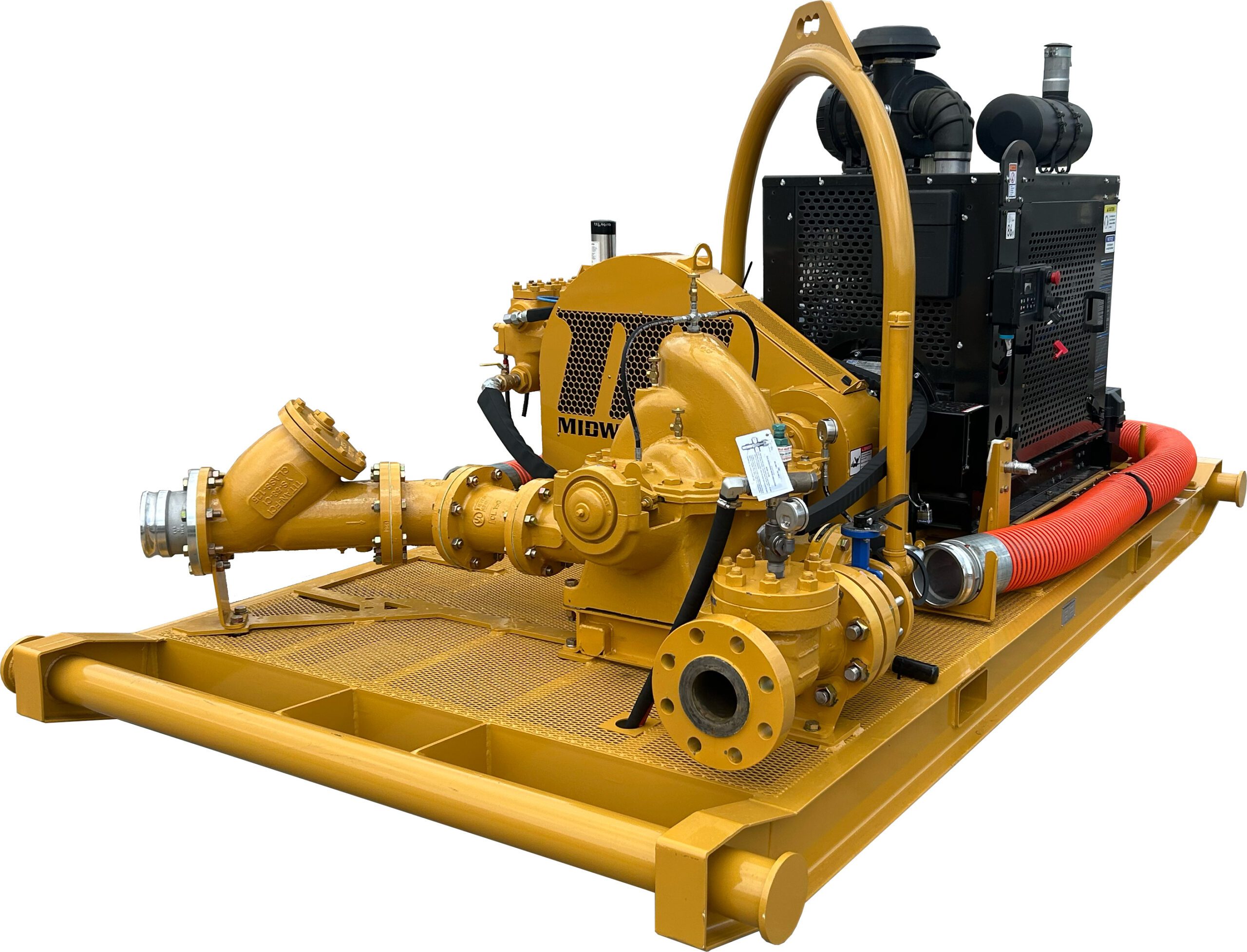

HTU-500 with Belt Drive
Our traditional, long standing, belt driven test pump units have been upgraded with new controls and additional instrumentation for operator assistance.
| HTU-500 | |
|---|---|
| Specifications | |
| Engine | CARB Tier 4 (F), EU Stage IV, US EPA Tier 4 (F) |
| Maximum Rated Speed | 2500 rpm (Set to 2,000 Maximum rpm) |
| Fill Pump Max Flow | 800 gpm |
| Test Pump Max Speed | 420 rpm |
| Full Manufacturer Specs ยป | |
| HTU-500 Features & Benefits |
|---|
| Ease of Operation: Uses a single power source to fill and test pipelines. Push-button controls allow independent operation of the fill and test pumps. |
| Fill Pump Performance: Outputs up to 600 gpm at 500 ft of head. |
| Test Pump Performance: Provides fully variable output up to 3,205 psi at 23 gpm. |
| High-Flow Centrifugal Fill Pump: Includes an inlet suction strainer and an outlet butterfly valve to assist with priming and flow regulation. |
| High-Pressure Triplex Test Pump: Features fully variable speed control and a pulsation dampener for smooth operation. |
| High-Pressure Check Valve: Allows automatic switchover from filling to testing. |
| Diesel Engine Power Pack: Enclosed diesel engine power pack with electric-over-hydraulic clutch engagement PTO. |
| Tandem-Axle Trailer: Fully equipped with leveling jacks and a lifting lug for transportation and jobsite setup. |
| Operator Control Station: Includes engine and operating controls, gauge displays, and a remote-control panel with a 100 ft cord. |
| Operation Readings: Displays suction temperature, suction pressure, fill pressure, fill flow, test pressure, test flow, and test volume. |
| Drain Valves: Allow pressure to be safely released and fluid to be drained from the system. |
| Optional Suction Hose: Available with an optional 20 ft suction hose featuring quick-connect fittings. |
