WATER MANAGEMENT - GEOSYNTHETIC SUPPLIES - CANADA

Cross Country has several water management solutions including dewatering bags, composite drains, wick drains, weeping tiles, foundation drains, water inflated barriers, and water conveyance.

Contact Canadian Geosynthetic Team
 (780) 962-6559

quote  Request a Quote

Dewatering Bags

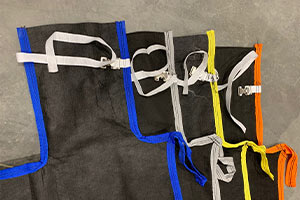

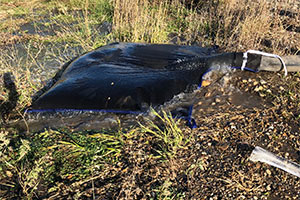

Custom dewatering bags are made from 8oz geotextile fabric. They are designed to filter silt laden water from construction sites. As site water is pumped into the bag, sediment is collected by the geotextile fabric, allowing filtered water to pass through. These bags are available in different sizes and are color coated for you convenience.


CCIS-DW10X10 10'X10' DEWATERING BAGS YELLOW
CCIS-DW3x5 3'X5' DEWATERING BAG BLUE
CCIS-DW5X15 5'X15' DEWATERING BAG SILVER
CCIS-DW5X7 5'X7' DEWATERING BAG ORANGE


CCIS Dewatering Bags
Download PDF

Composite Drains

Composite drain consists of a heavy duty polypropylene sheet cuspated under heat and pressure to form a 3 dimensional, high flow, dimpled drainage core. The core is then wrapped and bonded with a non-woven filter fabric. The filter fabric retains soil or sand particles as well as freshly placed concrete or grout, allowing filtered water to pass into the drainage core. Soil backfill is retained while allowing water to pass into the drainage system providing hydrostatic relief. Collected water is then conveyed to a collection system. The drainage core is chemically resistant and designed for applications where chemical exposure is possible. The 1 inch (25mm) profile design allows for higher venting and flow rates.


CCIS-SD6 Composite Strip Drain 150mm x 50m
CCIS-SD12 Composite Strip Drain 300mm x 50m
CCIS-SD6CP 150mm Coupler
CCIS-SD6EO 150mm End Outlet
CCIS-SD6SO 150mm Side Outlet
CCIS-SD6EO 150mm End Outlet
CCIS-SPL12 300mm Coupler
CCIS-12End 300mm End Outlet

CC- CCIS-SD6 & CCIS-SD12
Download PDF

Foundation Drains

Composite foundation drains are manufactured from heavy duty polypropylene sheet and are bonded to a nonwoven geotextile.  These drains replace traditional granular drains for concrete wall foundations, concrete bridge abutments and can be used in both vertical and horizontal applications.  These drains come in a variety of net/geotextile combinations dependent on the application.


CCIS-WND15 Foundation Wall Drain 1.2m x 15.2m
CCIS-JD300/302 Roof Top Drain, Embankment Drains 1.2m x 23m

CCIS-WND-15
Download PDF

CCIS-JD302
Download PDF

Wick Drain

Wick drains, also known as Prefabricated Vertical Drains (PVD) are prefabricated geotextile filter-wrapped plastic strips with molded channels. Wick Drains are commonly used behind curb and gutter to help remove any excess ground water or surface water that has penetrated through a crack in the concrete. Also can be used in-situ between the subsurface and granular lifts to promote crown or cross-cut drainage, often tied into the catch basin rings.



Technical Specifications
Download PDF

Weeping Tile

Cross Country supplies weeping tile for the civil construction and heavy civil industries. Weeping tile can be supplied solid, perforated, and perforated with geotextile sock to filter out fines. The 100mm weeping tile is primarily used on home foundations but is not limited to this application. It can also be used in leachate collection systems; retaining walls, road side drainage and lease perimeter drains. The 100mm weeping tile can be used where ever you need to move a body of water from one place to another. The 150mm weeping tile is also available.


CCIS-WPTP4100 Perforated Weeping Tile, C/W Sock 100mm x 30.5m
CCIS-WPTPS6100 Perforated Weeping Tile, C/W Sock 150mm x 30.5m
CCIS-WPTNP6100 Non-Perforated Weeping Tile 150mm x 30.5m
CCIS-WPTP6 Perforated Weeping Tile 150mm x 30.5m
CCIS-WPT4IC 100mm Internal Coupler
CCIS-WPT4IT 100mm Internal Tee
CCIS-WPT4EC 100mm End Cap
CCIS-WPT6IC 150mm Internal Coupler
CCIS-WP6CT 150mm Combination Tee

CCIS Weeping Tile
Download PDF

Water Inflated Barriers

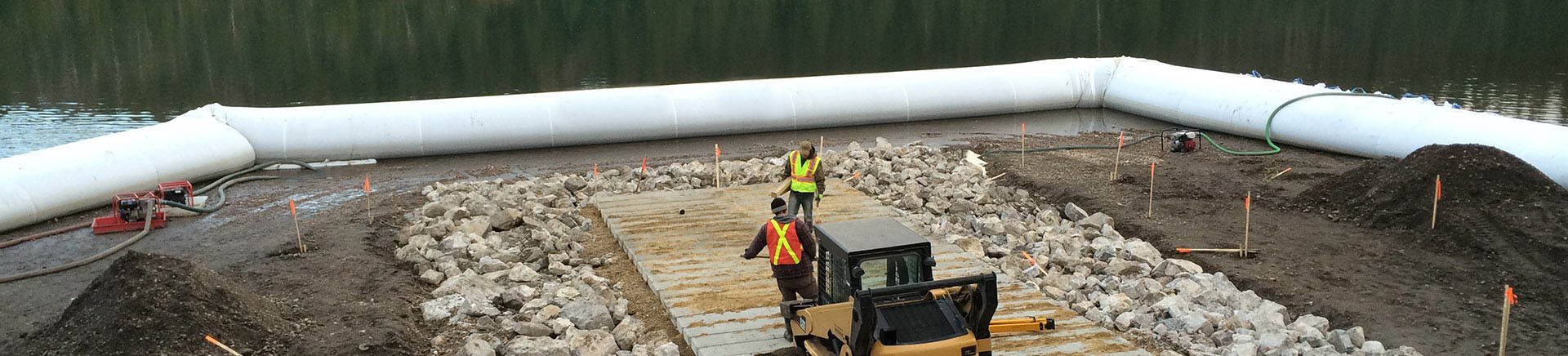

For civil construction cofferdams and flood mitigation.The Double Dam features a single internal stabilizing panel to provide and stability for all sizes up to 4' (1.2m) high.

The Triple Dam features two internal stabilizing panels to provide safety and stability for all sizes from 5' (1.5m) up to 8' (2.4m) high.


DD2450 50' 5' 120lbs
DD3650 50' 7.5' 180lbs
DD4850 50' 10' 230lbs
DD6050 50' 12.5' 320lbs
DD7250 50' 15.75' 405lbs
DD9650 50' 20.5' 520lbs

Ark Water-Inflated Barriers
Download PDF

Water Conveyance

Bituminous Gemembrane (BGM) liners are an extremely versatile flame-resistant containment solution. The U.S. Nuclear Saftey Agency qualifies them for a 1,000 year life span, based on UV resistance and physical durability. Highly resistant to punctures and tearing, they're also highly



Coletache-Bituminous-Geomembrane
Download PDF

Installation Instructions
Download PDF

This product listing is not inclusive of all our available products. Please call for any inquiries not listed on the website.
